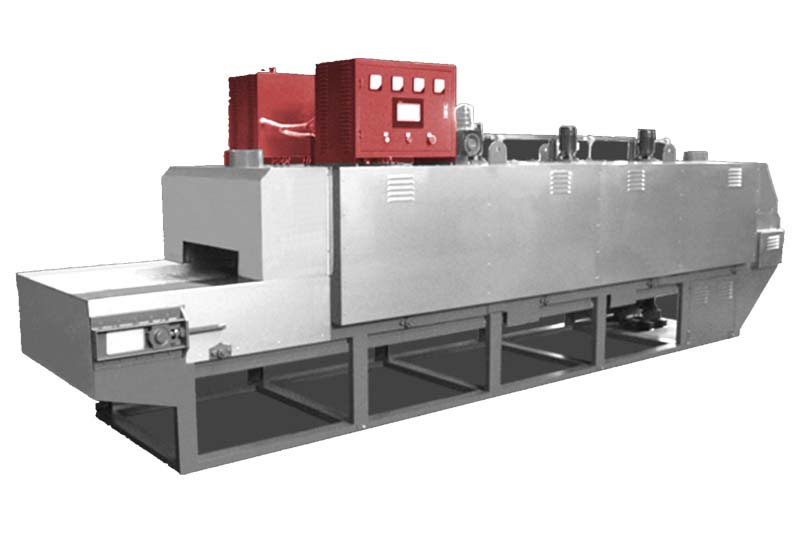

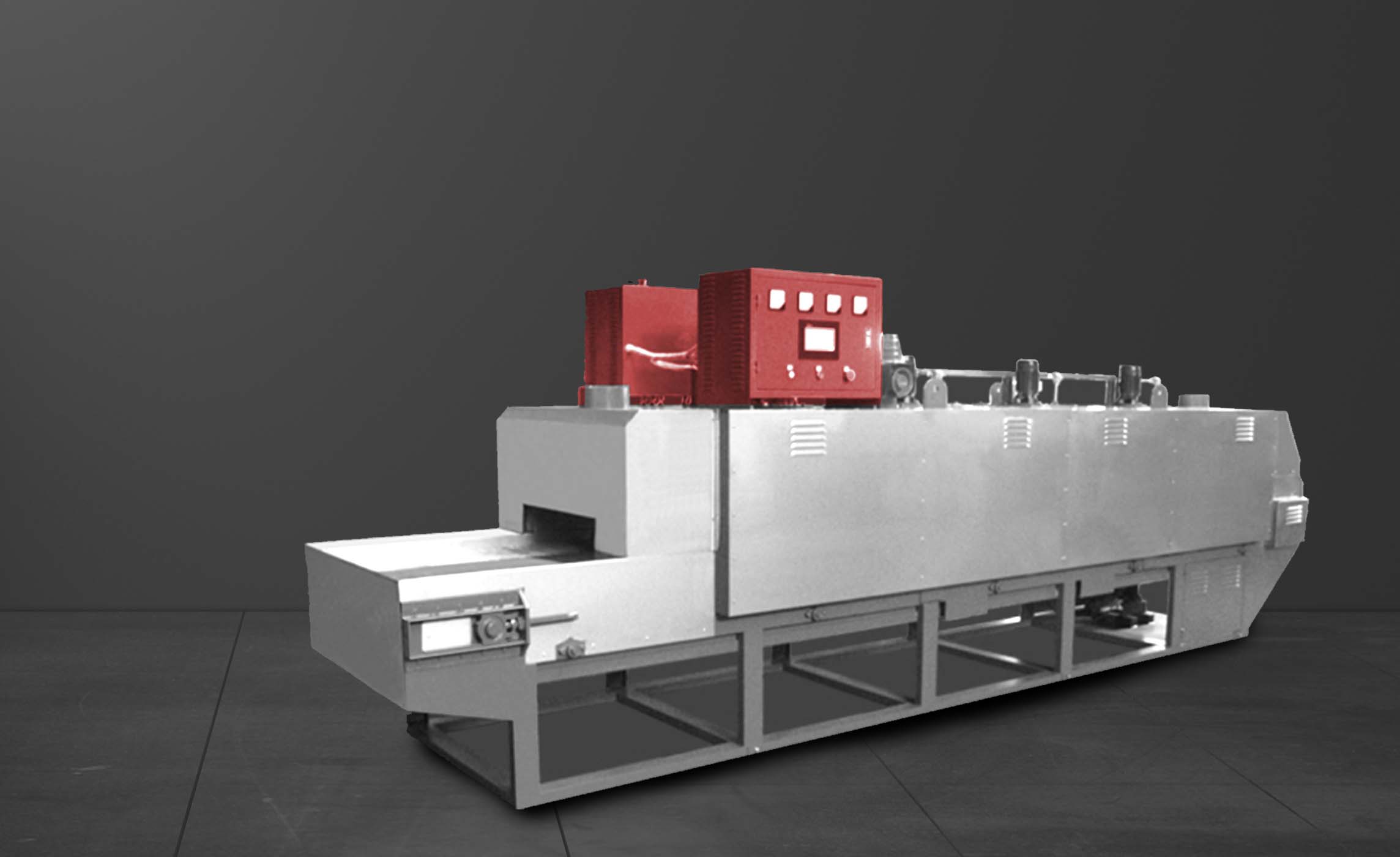

Spring Furnace
To Know More Info
Contact usProduct Application & case
Send a mail Us
SendProduct Details
Model | RJC-206 |
Ouside Dimensions (L*W*H)mm | 1600*750*1300 |
Hearth Dimensions (L*W*H)mm | 600*200*60 |
Power (kw) | 6 |
Tempering Temperature (°C) | Temperature in Furnace may be freely adjusted and set within 500°C |
Range of Tempering time (min) | 1.5-20 |
Diameter of Tempered Pieces (mm) | 0.1-3 |
output of Tempered pieces (kg/h) | 10-20 |
Weight of Furnace Body (kg) | 200 |
Model | RJC-210 |
Ouside Dimensions (L*W*H)mm | 2000*750*1300 |
Hearth Dimensions (L*W*H)mm | 1000*200*90 |
Power (kw) | 8 |
Tempering Temperature (°C) | Temperature in Furnace may be freely adjusted and set within 500°C |
Range of Tempering time (min) | 2.5-4.0 |
Diameter of Tempered Pieces (mm) | 0.1-6 |
output of Tempered pieces (kg/h) | 18-25 |
Weight of Furnace Body (kg) | 250 |
Model | RJC-215 |
Ouside Dimensions (L*W*H)mm | 2600*750*1300 |
Hearth Dimensions (L*W*H)mm | 1500*200*90 |
Power (kw) | 12 |
Tempering Temperature (°C) | Temperature in Furnace may be freely adjusted and set within 500°C |
Range of Tempering time (min) | 4-50 |
Diameter of Tempered Pieces (mm) | 0.1-6 |
output of Tempered pieces (kg/h) | 25-35 |
Weight of Furnace Body (kg) | 350 |
Model | RJC-315 |
Ouside Dimensions (L*W*H)mm | 2600*850*1320 |
Hearth Dimensions (L*W*H)mm | 1500*300*90 |
Power (kw) | 16 |
Tempering Temperature (°C) | Temperature in Furnace may be freely adjusted and set within 500°C |
Range of Tempering time (min) | 4-50 |
Diameter of Tempered Pieces (mm) | 0.1-6 |
output of Tempered pieces (kg/h) | 35-50 |
Weight of Furnace Body (kg) | 750 |
Model | RJC-320 |
Ouside Dimensions (L*W*H)mm | 3300*850*1400 |
Hearth Dimensions (L*W*H)mm | 2000*300*90 |
Power (kw) | 20 |
Tempering Temperature (°C) | Temperature in Furnace may be freely adjusted and set within 500°C |
Range of Tempering time (min) | 6-60 |
Diameter of Tempered Pieces (mm) | 0.1-6 |
output of Tempered pieces (kg/h) | 50-70 |
Weight of Furnace Body (kg) | 950 |
Model | RJC-420 |
Ouside Dimensions (L*W*H)mm | 3300*950*1400 |
Hearth Dimensions (L*W*H)mm | 2000*400*90 |
Power (kw) | 26 |
Tempering Temperature (°C) | Temperature in Furnace may be freely adjusted and set within 500°C |
Range of Tempering time (min) | 6-60 |
Diameter of Tempered Pieces (mm) | 0.5-6 |
output of Tempered pieces (kg/h) | 60-80 |
Weight of Furnace Body (kg) | 1000 |
Model | RJC-425 |
Ouside Dimensions (L*W*H)mm | 3900*950*1400 |
Hearth Dimensions (L*W*H)mm | 2500*400*100 |
Power (kw) | 30 |
Tempering Temperature (°C) | Temperature in Furnace may be freely adjusted and set within 500°C |
Range of Tempering time (min) | 6-60 |
Diameter of Tempered Pieces (mm) | 0.5-6 |
output of Tempered pieces (kg/h) | 70-90 |
Weight of Furnace Body (kg) | 1200 |
Model | RJC-430 |
Ouside Dimensions (L*W*H)mm | 4400*950*1500 |
Hearth Dimensions (L*W*H)mm | 3000*400*100 |
Power (kw) | 35 |
Tempering Temperature (°C) | Temperature in Furnace may be freely adjusted and set within 500°C |
Range of Tempering time (min) | 8-60 |
Diameter of Tempered Pieces (mm) | 0.5-6 |
output of Tempered pieces (kg/h) | 80-120 |
Weight of Furnace Body (kg) | 1300 |
RJC-206
Model | RJC-206 |
Ouside Dimensions (L*W*H)mm | 1600*750*1300 |
Hearth Dimensions (L*W*H)mm | 600*200*60 |
Power (kw) | 6 |
Tempering Temperature (°C) | Temperature in Furnace may be freely adjusted and set within 500°C |
Range of Tempering time (min) | 1.5-20 |
Diameter of Tempered Pieces (mm) | 0.1-3 |
output of Tempered pieces (kg/h) | 10-20 |
Weight of Furnace Body (kg) | 200 |
RJC-210
Model | RJC-210 |
Ouside Dimensions (L*W*H)mm | 2000*750*1300 |
Hearth Dimensions (L*W*H)mm | 1000*200*90 |
Power (kw) | 8 |
Tempering Temperature (°C) | Temperature in Furnace may be freely adjusted and set within 500°C |
Range of Tempering time (min) | 2.5-4.0 |
Diameter of Tempered Pieces (mm) | 0.1-6 |
output of Tempered pieces (kg/h) | 18-25 |
Weight of Furnace Body (kg) | 250 |
RJC-215
Model | RJC-215 |
Ouside Dimensions (L*W*H)mm | 2600*750*1300 |
Hearth Dimensions (L*W*H)mm | 1500*200*90 |
Power (kw) | 12 |
Tempering Temperature (°C) | Temperature in Furnace may be freely adjusted and set within 500°C |
Range of Tempering time (min) | 4-50 |
Diameter of Tempered Pieces (mm) | 0.1-6 |
output of Tempered pieces (kg/h) | 25-35 |
Weight of Furnace Body (kg) | 350 |
RJC-315
Model | RJC-315 |
Ouside Dimensions (L*W*H)mm | 2600*850*1320 |
Hearth Dimensions (L*W*H)mm | 1500*300*90 |
Power (kw) | 16 |
Tempering Temperature (°C) | Temperature in Furnace may be freely adjusted and set within 500°C |
Range of Tempering time (min) | 4-50 |
Diameter of Tempered Pieces (mm) | 0.1-6 |
output of Tempered pieces (kg/h) | 35-50 |
Weight of Furnace Body (kg) | 750 |
RJC-320
Model | RJC-320 |
Ouside Dimensions (L*W*H)mm | 3300*850*1400 |
Hearth Dimensions (L*W*H)mm | 2000*300*90 |
Power (kw) | 20 |
Tempering Temperature (°C) | Temperature in Furnace may be freely adjusted and set within 500°C |
Range of Tempering time (min) | 6-60 |
Diameter of Tempered Pieces (mm) | 0.1-6 |
output of Tempered pieces (kg/h) | 50-70 |
Weight of Furnace Body (kg) | 950 |
RJC-420
Model | RJC-420 |
Ouside Dimensions (L*W*H)mm | 3300*950*1400 |
Hearth Dimensions (L*W*H)mm | 2000*400*90 |
Power (kw) | 26 |
Tempering Temperature (°C) | Temperature in Furnace may be freely adjusted and set within 500°C |
Range of Tempering time (min) | 6-60 |
Diameter of Tempered Pieces (mm) | 0.5-6 |
output of Tempered pieces (kg/h) | 60-80 |
Weight of Furnace Body (kg) | 1000 |
RJC-425
Model | RJC-425 |
Ouside Dimensions (L*W*H)mm | 3900*950*1400 |
Hearth Dimensions (L*W*H)mm | 2500*400*100 |
Power (kw) | 30 |
Tempering Temperature (°C) | Temperature in Furnace may be freely adjusted and set within 500°C |
Range of Tempering time (min) | 6-60 |
Diameter of Tempered Pieces (mm) | 0.5-6 |
output of Tempered pieces (kg/h) | 70-90 |
Weight of Furnace Body (kg) | 1200 |
RJC-430
Model | RJC-430 |
Ouside Dimensions (L*W*H)mm | 4400*950*1500 |
Hearth Dimensions (L*W*H)mm | 3000*400*100 |
Power (kw) | 35 |
Tempering Temperature (°C) | Temperature in Furnace may be freely adjusted and set within 500°C |
Range of Tempering time (min) | 8-60 |
Diameter of Tempered Pieces (mm) | 0.5-6 |
output of Tempered pieces (kg/h) | 80-120 |
Weight of Furnace Body (kg) | 1300 |
Auto Link Technologies Co., Ltd. is the leading top manufacturer and supplier of Spring furnace with vast industrial experience.
We are developing our machines using superior quality raw materials and the latest technology to ensure the best safety standards. The Spring Furnace is available with us in various specifications and sizes. We will assist you in choosing the right product to meet all your industrial needs.
Auto Link with a team of skilled professionals guarantees that our machines are developed as per international standards of quality. We manufacture the Furnace at a high standard.
It is the best equipment to enhance product quality, reduce production cost and improve the production capacity in the industries
