AUTOMATIC SERVO (A SERIES)
Product Application & case
Product Details

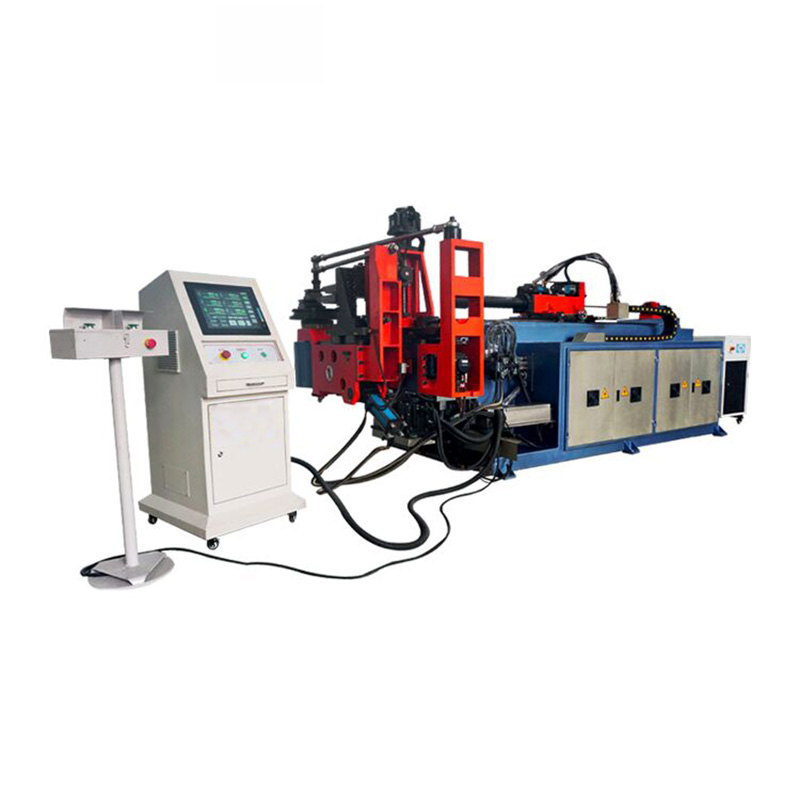

| Model Name | Automatic Pipe Bending Machine X Servo |
| Type | CNC CONTROL AUTOMATIC (X SERVO /A SERIES) |
| Certification | CE/SGS/TUV/ISO |
| Place of Origin | China |
| Application | Pipes or solid bars,various materials such as steel, stainless, aluminum and copper |
| Packaging Details | Packed in stretch film firstly, and then reinforced with plywood for outer packing |
X Servo(A series)
| Model Name | Automatic Pipe Bending Machine X Servo |
| Type | CNC CONTROL AUTOMATIC (X SERVO /A SERIES) |
| Certification | CE/SGS/TUV/ISO |
| Place of Origin | China |
| Application | Pipes or solid bars,various materials such as steel, stainless, aluminum and copper |
| Packaging Details | Packed in stretch film firstly, and then reinforced with plywood for outer packing |
| Model | Bending Capacity (mm) | Max Bending Radius(mm) | Motor Power (Kw) |
|---|---|---|---|
| AL18CNCX3A-3S | OD 18 | R80 | 3 |
| AL18CNCX6A-4S | OD 18 | R80 | 3 |
| AL25CNCX3A-2S | OD 25.4 | R100 | 3 |
| AL38CNCX3A-2S | OD 38.1 | R180 | 4 |
| AL38CNCX4A-3S | OD 38.1 | R180 | 4 |
| AL38CNCX5A-3S | OD 38.1 | R180 | 4 |
| AL38CNCX6A-4S | OD 38.1 | R180 | 4 |
| AL50CNCX3A-2S | OD 50.8 | R250 | 5.5 |
| AL63CNCX3A-2S | OD 63.5 | R250 | 5.5 |
| AL63CNCX8A-4S | OD 63.5 | R250 | 5.5 |
| AL75CNCX3A-2S | OD 76.2 | R250 | 7.5 |
| AL75CNCX4A-2S | OD 76.2 | R250 | 7.5 |
| AL75CNCX5A-3S | OD 76.2 | R250 | 7.5 |
| AL75CNCX8A-3S | OD 76.2 | R250 | 7.5 |
| AL75CNCX8A-4S | OD 76.2 | R250 | 7.5 |
| AL89CNCX3A-2S | OD 88.9 | R250 | 11 |
| AL130CNCX3A-2S | OD 127 | R400 | 22 |
